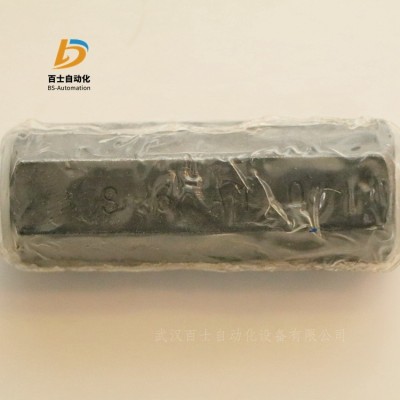

單向閥R900422881 S6A1.0力士樂原廠原裝貨源充足

單向閥R900422881 S6A1.0力士樂原廠原裝貨源充足

武漢百士自動化設備有限公司主營銷售產品，產品實拍，原裝正品，客戶買的安心，用的放心。常用產品現

貨供應，歡迎新老客戶詢價采購！

產品簡介：

力士樂REXROTH先導式單向閥

SV 6

規格 6

組件系列 6X

大工作壓力 315 bar

大流量 60 l/min

用于底板安裝

油口安裝面符合  ISO 4401-03-02-0-05 和  ISO 5781-03-04-0-00

用于一個執行機構油口的無泄漏阻塞

帶內部先導油回油

具有多種開啟壓力，可選

帶或不帶預開口，可選

單向閥安裝套件可單獨使用

耐腐蝕設計，可選

SV 型單向閥是用于底板安裝的先導式單向閥。用于一個執行機構油口的無泄漏阻塞，甚至能夠用于長期停機的情況。

該閥主要由殼體、提升座閥、壓縮彈簧、控制閥芯以及可選預開口球座閥組成。

座閥允許流體從方向 A 流向 B，而無需外部先導壓力。

條件： pA > pB + 開啟壓力（壓縮彈簧）。在相反方向上，座閥以液壓方式緊閉。

油口 X 處的高先導壓力足以使控制閥芯沿座閥方向移動，并推動提升座閥離開其閥座。這便實現了兩個方向上的自由流動（主動保

持打開）。

為確保座閥主動打開，控制閥芯兩側上的壓力比與提升座閥或上的面積比同樣重要。

因此，提供了以下不同類型

SV（連接至 pA 的大閥芯端面 A2）或?

以及帶預開口“A”和不帶預開口“B”的型號。

型號“A”（帶預開口）

該閥配有一個附加的預開口。通過對油口 X 加壓，控制閥芯將向右移動。這樣一來，滾珠和提升座閥將先后被推出閥座。

注意！

型號“A”：

由于使用的是具有擴大的開口控制面積比的兩層結構，使用較低的先導壓力也可以安全卸載。?

避免由于執行機構側的壓力容積的衰減降壓而導致的換向沖擊。?

型號“B”：

閥門不帶預開口時，可能會突然卸載所含的壓力容積。產生的換向沖擊不但會導致安裝組件的過早磨損，還會形成噪音。?

替換插頭和可實現從 SV 型號到 SL 型號的修改。必須始終安裝其中一個插頭！

力士樂REXROTH先導式單向閥

SV 10...32

R900599743 SV30GB1-4X/

規格 10 … 32

組件系列 4X

大工作壓力 315 bar

大流量 550 l/min

用于底板安裝

油口安裝面符合 ISO 5781-06-07-0-00 (NG10)、ISO 5781-08-10-0-00 (NG20)、ISO 5781-10-13-0-00 (NG32)

用于螺紋連接

用于一個執行機構油口的無泄漏阻塞

內部先導油回油

可用于衰減釋放的帶預開口的型號，可選

具有多種開啟壓力，可選

單向閥安裝套件可單獨使用

防腐蝕設計

SV 型單向閥是用于底板安裝或螺紋連接的先導式單向閥。用于一個執行機構油口的無泄漏阻塞，甚至能夠用于長期停機的情況。

該閥門主要由殼體、提升座閥、壓縮彈簧、控制閥芯以及可選預開口球座閥 組成。

座閥允許流體從 A 流向 B，而無需外部先導壓力。在相反方向上，座閥以液壓方式緊閉。

條件： pA > pB + 開啟壓力（壓縮彈簧）。

油口 X 處的高先導壓力足以使控制閥芯沿球座閥（型號“A”）方向移動，并推動提升座閥離開其閥座。這便實現了兩個方向上的

自由流動（主動保持打開）。

為確保座閥主動打開，控制閥芯兩側上的壓力比與控制閥芯或提升座閥上的面積比同樣重要。

因此，為 SV 型（大環形區域）提供了帶預開口“A”和不帶預開口“B”的型號。 A3 ; with pA 已連接）。

型號“A”（帶預開口）

該閥配有一個附加的預開口。通過對油口 X 加壓，控制閥芯將向右移動。這樣一來，滾珠 和提升座閥將先后被推出閥座。

注意事項：

型號“A”：

由于使用的是具有擴大的開口控制面積比的兩級設置，使用較低的先導壓力也可以安全卸載。‐

避免由于執行機構側壓力容積的衰減降壓而導致的換向沖擊。‐

型號“B”：

閥門不帶預開口時，可能會突然卸載所含的壓力容積。產生的換向沖擊不但會導致安裝組件的過早磨損，還會形成噪音。

德國力士樂REXROTH先導式單向閥訂貨號和型號：

力士樂REXROTH管式單向閥S6…S30 A..-1X/...

R900474245 S6A1.0//2

R900423420 S6A1.0//3

R900422882 S6A1.0//5

R900338447 S6A1.0/J

R900532992 S6A1.0/J

R900988496 S6A1.0/J/2

R901402464 S6A1.0/J3

R900455337 S6A1.0/SO 27

R900468725 S6A1.0/SO 82

R900387664 S6A1.0/SO16

R900360098 S6A1.0/SO30

R900414011 S6A1.0/SO31

R900031429 S6A1.0/SO700

R900069896 S6A1.0/SO772

R900577939 S6A1.0/SO772

R900463442 S6A1.0/SO99

R900422881 S6A1.0/

R900587362 S6A1.0/SO68

R900422886 S8A1.0/

R900488016 S8A1.0//12

R900351697 S8A1.0//2

R900423406 S8A1.0//3

R900423425 S8A1.0//5

R900466273 S8A1.0/J

R900563454 S8A1.0/J

R901383283 S8A1.0/J3

R901307517 S8A1.0/J50

R900595555 S8A1.0/MK

R900455349 S8A1.0/SO 27

R900435669 S8A1.0/SO16

R900763575 S8A1.0/SO200

R900974602 S8A1.0/SO200 G1/2

R900705216 S8A1.0/SO200 M30X2

R900565485 S8A1.0/SO31

R900506288 S8A1.0/SO55

R900508839 S8A1.0/SO67

R900069899 S8A1.0/SO772

R900577940 S8A1.0/SO772

R900496756 S8A1.0/SO99

R900930238 S8A1.0=

R900489870 S8A1.X/3 SO 29

R900352047 S8A1.X/SO 29

R900424527 S8A1.X/SO 68

R900442267 S8A1.0/SO68

R901454054 S8A15-1X/450J3

R901454173 S8A15-1X/450J3/12

R909152404 S8A1.0

R900420531 S10A1.0/

R900497659 S10A1.0//12

R900203377 S10A1.0//12SO68

R901426119 S10A1.0/B12

R901426117 S10A1.0/B15

R900533024 S10A1.0/B16SO98

R900990855 S10A1.0/J

R900463770 S10A1.0/J

R901383282 S10A1.0/J3

R900372704 S10A1.0/SO67

R900380829 S10A1.0/SO90

R900491612 S10A1.0/SO100

R900401302 S10A1.0/SO30

R900435989 S10A1.0//2

R900423957 S10A1.0//3

R900398992 S10A1.0//3SO68

R900497867 S10A1.0//3SO72

R900424731 S10A1.0//5

R900391096 S10A1.0//5SO68

R901426590 S10A1.0/B00

R901426122 S10A1.0/B08

R901426115 S10A1.0/B10

R900564159 S10A1.0/B10SO98

R900589072 S10A1.0/SO56

R900371721 S10A1.0/SO65

R900588799 S10A1.0/SO700

R901246106 S10A1.0/SO710

R979811277 S10A1.0/SO41-8304

R900420525 S20A1.0/

R900470782 S20A1.0//12

R901438137 S20A1.0//12/J3

R900474694 S20A1.0//2

R900429845 S20A1.0//3

R900420526 S20A1.0//5

R900217647 S20A1.0//5SO72

R901426096 S20A1.0/B15/12

R900436645 S20A1.0/J

R901404547 S20A1.0/J3

R901293886 S20A1.0/J50

R900400129 S20A1.0/SO85

R900334619 S20A1.0/SO88

R900352898 S20A1.0/SO99

R900354562 S20A1.0/SO14

R900365884 S20A1.0/SO16

R900513841 S20A1.0/SO31

R900393790 S20A1.0/SO45

R900406112 S20A1.0/SO56

R900490053 S20A1.0/SO65

R900508473 S20A1.0/SO66

R900513842 S20A1.0/SO96

R901221417 S20A1.0=

R978896463 S20A1.0/12SO72

R901454057 S10A00-1X/450J3

R901454175 S10A00-1X/450J3/12

R901454058 S10A02-1X/450J3

R901454059 S10A02-1X/450J3/12

R901424189 S10A05-1X/450J3

R901456430 S10A05-1X/450J3B00

R901454644 S10A05-1X/450J3B08

R901454645 S10A05-1X/450J3B15

R901449002 S10A05-1X/450J3/12

R901454060 S10A15-1X/450J3

R901451456 S10A15-1X/450J3/12

R901454061 S10A30-1X/450J3

R901454176 S10A30-1X/450J3/12

R901454062 S10A50-1X/450J3

R901454177 S10A50-1X/450J3/12

R901454063 S15A00-1X/450J3

R901454178 S15A00-1X/450J3/12

R901444092 S15A02-1X/450J3

R901454179 S15A02-1X/450J3/12

R901454065 S15A05-1X/450J3

R901454064 S15A05-1X/450J3B00

R901454180 S15A05-1X/450J3/12

R901454066 S15A15-1X/450J3

R901454182 S15A15-1X/450J3/12

R901454067 S15A30-1X/450J3

R901454183 S15A30-1X/450J3/12

R901454069 S15A50-1X/450J3

R901454184 S15A50-1X/450J3/12

R901454070 S20A00-1X/450J3

R901454185 S20A00-1X/450J3/12

R901444093 S20A02-1X/450J3

R901454071 S20A02-1X/450J3/12

R901424190 S20A05-1X/450J3

R901456431 S20A05-1X/450J3B00

R901451454 S20A05-1X/450J3B15/12

R901454073 S20A05-1X/450J3/12

R901454074 S20A15-1X/450J3

R901454186 S20A15-1X/450J3/12

R901451714 S20A30-1X/450J3

R901454075 S20A30-1X/450J3/12

R901454076 S20A50-1X/450J3

R901454187 S20A50-1X/450J3/12

R901454077 S25A00-1X/420J3

R901454188 S25A00-1X/420J3/12

R901454078 S25A02-1X/420J3

R901454189 S25A02-1X/420J3/12

R901454079 S25A05-1X/420J3

R901454190 S25A05-1X/420J3/12

R901454080 S25A15-1X/420J3

R901454646 S25A15-1X/420J3B10

R901454191 S25A15-1X/420J3/12

R901454081 S25A30-1X/420J3

R901454192 S25A30-1X/420J3/12

R901454083 S25A50-1X/420J3

R901454647 S25A50-1X/420J3B00

R901454193 S25A50-1X/420J3/12

R901454085 S25A80-1X/420J3

R901454086 S30A00-1X/420J3

R901454194 S30A00-1X/420J3/12

R901454088 S30A02-1X/420J3

R901454195 S30A02-1X/420J3/12

R901454090 S30A05-1X/420J3

R901456599 S30A05-1X/420J3B00

R901461534 S30A05-1X/420J3B10

R901454196 S30A05-1X/420J3/12

R901454092 S30A15-1X/420J3

R901454197 S30A15-1X/420J3/12

R901454093 S30A30-1X/420J3

R901454198 S30A30-1X/420J3/12

R901454094 S30A50-1X/420J3

R901454199 S30A50-1X/420J3/12

R901454095 S30A80-1X/420J3

R901454043 S6A00-1X/450J3

R901454045 S6A02-1X/450J3

R901454046 S6A05-1X/450J3

R901454047 S6A15-1X/450J3

R901454048 S6A30-1X/450J3

R901454049 S6A50-1X/450J3

R901454050 S8A00-1X/450J3

R901454171 S8A00-1X/450J3/12

R901454051 S8A02-1X/450J3

R901454052 S8A05-1X/450J3

R901454172 S8A05-1X/450J3/12

R901454054 S8A15-1X/450J3

R901454173 S8A15-1X/450J3/12

R901454055 S8A30-1X/450J3

R901454174 S8A30-1X/450J3/12

R901454056 S8A50-1X/450J3

力士樂REXROTH截止閥S52...S150

R900419834 S102F0-1X/

R900415099 S102F1-1X/

R900536870 S102F1-1X//12

R900461432 S102F1-1X//5

R900468632 S102F1-1X/ SO6

R900342762 S102F1-1X/V

R900403998 S102F1-1X/V/5

R900472434 S102F2-1X/

R900405525 S102F2-1X/5

R900424628 S102F3-1X/

R900372480 S102F3-1X/5

R900775128 S125F1-1X/

R900451745 S52F0-1X/

R900473775 S52F0-1X/5

R900345561 S52F0-1X/5 SO6

R900343333 S52F0-1X/ SO6

R900490803 S52F0-1X/V

R900444199 S52F1-1X/

R900081556 S52F1-1X//12

R900454189 S52F1-1X/5

R900479136 S52F1-1X/5 SO6

R900486054 S52F1-1X/J

R900451716 S52F1-1X/ SO6

R900462637 S52F1-1X/V

R900377137 S52F1-1X/V SO6

R900471511 S52F1-1X/V/5

R900448778 S52F2-1X/

R900479258 S52F2-1X/5

R900486148 S52F2-1X/J

R900427338 S52F2-1X/ SO6

R900467383 S52F2-1X/V

R900497866 S52F2-1X/V SO6

R900387129 S52F2-1X/V/5

R900445965 S52F3-1X/

R900778756 S52F3-1X//12

R900469458 S52F3-1X//5

R900490188 S52F3-1X/5 SO6

R900389647 S52F3-1X/J

R900462159 S52F3-1X/ SO6

R900403053 S52F3-1X/V

R900392302 S52F3-1X/V SO6

R900417749 S52F3-1X/V/5

R900402030 S52F5-1X/

R900412820 S52F5-1X/5

R900464840 S52F5-1X/ SO6

R900403999 S52P0-1X/

R900381450 S52P0-1X/5

R900445213 S52P1-1X/

R900461433 S52P1-1X//5

R900359403 S52P1-1X/V

R900448278 S52P2-1X/

R900491463 S52P2-1X//5

R900447769 S52P3-1X/

R900505733 S52P3-1X/V

R900359763 S52P5-1X/

R900383686 S52P5-1X//5

R900454193 S62F0-1X/

R900352912 S62F0-1X//5

R900375039 S62F0-1X/ SO6

R900444617 S62F1-1X/

R900495362 S62F1-1X/

R900759680 S62F1-1X//12

R900586956 S62F1-1X//5

R900461430 S62F1-1X/5

R900345560 S62F1-1X/5 SO6

R900462163 S62F1-1X/ SO6

R900473275 S62F1-1X/V

R900401050 S62F1-1X/V/5

R901426698 S62F1-1X=V

R900447467 S62F2-1X/

R900400731 S62F2-1X/5

R900334244 S62F2-1X/V

R900497865 S62F2-1X/V SO6

R900401049 S62F2-1X/V/5

R900448170 S62F3-1X/

R900406838 S62F3-1X//5

R900472820 S62F3-1X/ SO6

R900378994 S62F3-1X/V

R900407208 S62F3-1X/V/5

R900445214 S62P1-1X/

R900461434 S62P1-1X/5

R900211273 S62P1-1X/V

R900452805 S62P2-1X/

R900464478 S62P3-1X/

R900386740 S62P3-1X//5

R900337936 S82F0-1X/

R900411666 S82F0-1X/5

R901114168 S82F0-1X/V

R900444819 S82F1-1X/

R900766589 S82F1-1X//12

R900461431 S82F1-1X//5

R900492655 S82F1-1X/JV

R900451717 S82F1-1X/ SO6

R900408323 S82F1-1X/V

R900403997 S82F1-1X/V/5

R900455986 S82F2-1X/

R900402795 S82F2-1X/5

R900492656 S82F2-1X/JV

R900498983 S82F2-1X/ SO6

R900408324 S82F2-1X/V

R900459789 S82F3-1X/

R900400399 S82F3-1X/5

R900405609 S82F3-1X/ SO6

R901175953 S82F3-1X/V

R900494038 S82F3-1X/V/5

R900454752 S82P1-1X/

R900461435 S82P1-1X/5

R900479594 S82P1-1X/V

R900384546 S82P2-1X/

R900730560 S150F1-1X/

R901145845 S150F1-1X/V
