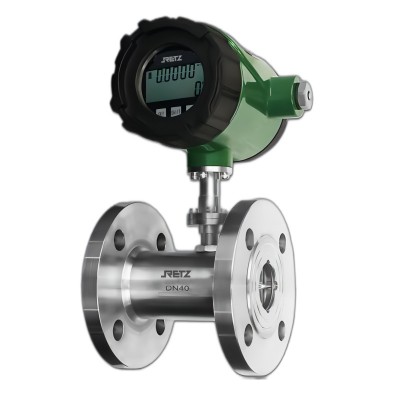

進口液體渦輪流量計 RETZ品牌

品牌：RETZ/我們一直致力于流體控制和測控領域的持續創新，始于2005……進口液體渦輪流量計產品用途 Product use

液體渦輪流量具有結構簡單、輕巧、精度高、復現性好、反應靈敏，安裝維護使用方便等特點，廣泛用于測量封閉管道中與不銹鋼1Cr18Ni9Ti、2Cr13及鋼Al203、硬質合金不起腐蝕作用，且無纖維、顆粒等雜質，工作溫度下運動粘度小于5×10-6m2/s 的液體，對于運動粘度大于5×10-6m2/s的液體，可對流量計進行實液標定后使用。若與具有特殊功能的顯示儀表配套，還可以進行定量控制、超量報警等，是流量計量和節能的理想儀表

Liquid turbine flow has the characteristics of simple structure, lightweight, high accuracy, good reproducibility, sensitive response, and convenient installation, maintenance, and use. It is widely used for measuring closed pipelines, and is not corrosive to stainless steel 1Cr18Ni9Ti, 2Cr13, steel Al203, and cemented carbide, and is free of impurities such as fibers and particles. Its kinematic viscosity at operating temperature is less than 5 × 10-6m2/s liquid, for kinematic viscosity greater than 5 × 10-6m 2/ S of liquid, which can be used after calibrating the flowmeter with real liquid. If matched with a display instrument with special functions, it can also perform quantitative control, excess alarm, etc. It is an ideal instrument for flow measurement and energy conservation

進口液體渦輪流量計結構特點 Structural features

1.高精度，一般可達 士1%R、士0.5%R，高精度型可達 士0.2%R High precision, general Kodaz 1% R, 0.5% R, high precision Kodaz 0.2% R

2.重復性好，短期重復性可達0.05%～0.2%，正是由于具有良好的重復性，如經常校準或在線校準可得到很高的精度 Good repeatability, with short-term repeatability up to 0.05% to 0.2%. This is precisely because of its good repeatability, such as frequent calibration or online calibration, which can achieve extremely high accuracy

3.輸出脈沖頻率信號，適用總量計量及與計算機連接，無零點漂移，抗干擾能力強 Output pulse frequency signal, suitable for total metering and computer connection, no zero drift, strong anti-interference ability

4.可獲得很高的頻率信號（3～4kHz），信號分辨力強 High frequency signals (3-4 kHz) can be obtained with strong signal resolution

5.量程比較寬，中大口徑可達1：20，小口徑為1：10 The range is relatively wide, with medium and large diameters up to 1:20 and small diameters up to 1:10

6.結構緊湊輕巧，安裝維護方便，流通能力大 Compact and lightweight structure, convenient installation and maintenance, and large circulation capacity

7.適用高壓測量，儀表表體上不必開孔，易制成高壓型儀表 It is suitable for high pressure measurement, and it is not necessary to open holes on the meter body, making it easy to make a high pressure instrument

8.可制成插入型，適用于大口徑測量，壓力損失小，價格低，可不斷流取出，安裝維護方便 It can be made into an insertion type, suitable for large diameter measurement, with small pressure loss, low price, and can be taken out without interruption, which is convenient for installation and maintenance

進口液體渦輪流量計技術參數  Technical parameter
