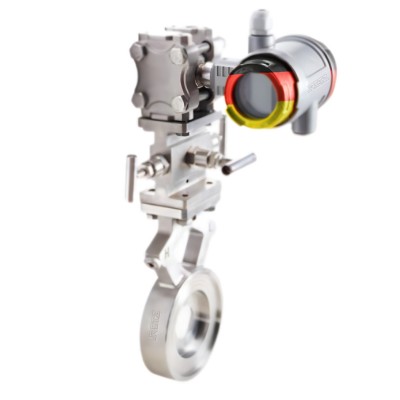

進口孔板流量計 RETZ品牌

品牌：RETZ/我們一直致力于流體控制和測控領域的持續創新，始于2005……進口孔板流量計作為過程自動化控制系統的檢測儀表和測量物料數量的總量表，被廣泛適用于煤炭、化工、交通、建筑、輕紡、食品、醫藥、農業、環境保護各個領域

進口孔板流量計原理及用途Principle and purpose

孔板流量計是將標準孔板與多參量差壓變送器（或差壓變送、溫度變送器及壓力變送器）配套組成的高量程比差壓流量，充滿管進口孔板流量計原理及用途.jpg道的流體流程管道內的節流裝置，在節流件附近邊成局部收縮，流速增加，在其上、下游兩側產生靜壓力差（如圖）。在已知有關參數的條件下，根據流動連續件原理和伯努利方程可以推異出辨壓與流量之間的關系（流量愈大，所產生的壓差愈大）而求得流量。

Orifice plate flowmeter is a high range ratio differential pressure flow device composed of a standard orifice plate and a multi-parameter differential pressure transmitter (or differential pressure transmitter, temperature transmitter, and pressure transmitter). The throttling device in the fluid flow pipeline that is filled with the pipeline locally contracts near the throttling component, increases the flow rate, and generates a static pressure difference on both upstream and downstream sides (as shown in Figure 1). Under the condition that relevant parameters are known, the relationship between differential pressure and flow rate can be inferred based on the principle of flow continuity and Bernoulli equation (the larger the flow rate, the greater the pressure difference generated) to obtain the flow rate.

進口孔板流量計 Main features

節流裝置結構簡單、牢固，性能穩定可靠，使用期限長 The throttling device has a simple and firm structure, stable and reliable performance, and a long service life進口孔板流量計2.jpg

應用范圍廣，全部單相流皆可測量，部分混相流亦可應用 Wide application range, all single-phase flows can be measured, and some mixed phase flows can also be applied

標準型節流裝置無須實流校準，即可投用 The standard throttling device can be put into use without actual flow calibration

安裝更簡單，無須引壓管，可直接接差壓變送器和壓力變送器 Installation is simpler, without the need for pressure pipes, and can be directly connected to differential pressure transmitters and pressure transmitters

采用進口單晶硅智能差壓傳感器 Adopting imported monocrystalline silicon intelligent differential pressure sensor

高精度，完善的自診斷功能 High precision and comprehensive self-diagnosis function

智能孔板流量計智能孔板流量計其量程可自編程調整 The range of the intelligent orifice flowmeter can be self programmable and adjusted

智能孔板流量計可同時顯示累計流量、瞬時流量、壓力、溫度 The intelligent orifice flowmeter can simultaneously display cumulative flow rate, instantaneous flow rate, pressure, and temperature

具有在線、動態全補償功能外，智能孔板流量計還具有自診斷、自行設定量程 In addition to online and dynamic full compensation functions, the intelligent orifice flowmeter also has self-diagnosis and self setting range

配有多種通訊接口 Equipped with multiple communication interfaces

穩定性高 High stability

量程范圍寬、大于10：1  Wide range, greater than 10:1

富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
