品牌：RETZ/我們一直致力于機械設備和測控領域的持續創新，始于2005……進口蛇形彈性聯軸器用來連接兩軸以傳遞運動和扭矩的裝置，只有在機器停止運轉后才能接合或分離。由于制造和安裝誤差、加載后的變形以及溫度變化的影響，蛇形彈簧聯軸器連接的兩軸不能保證嚴格對中，但存在一定程度的相對位移。這就要求在設計聯軸器時，應采取各種結構措施，使其適應一定范圍的相對位移。

進口蛇形彈性聯軸器產品用途 Product use

彈性蛇簧聯軸器以蛇形彈簧片軸向嵌入兩半聯軸節的齒槽內，來實現主動軸與從動軸的聯接。運轉時，是靠原動端齒面對簧片的周向作用力帶動從動端，來傳遞權矩，如此在很大程度上避免了共振現象發生，且簡片在傳遞掃矩時所產生的彈性變形，使機械系統能獲得較好的減振效果，其平均減振率達36%以上。蛇形彈簧片采用優質彈簧鋼制造，經嚴格的加工處理、具有良好的機械性能，使聯軸器的使用壽命比非金屬彈性元件聯軸器大為增長。The elastic serpentine spring coupling is embedded in the tooth slots of the two coupling halves axially with serpentine springs to achieve the connection of the driving shaft and the driven shaft. During operation, the driven end is driven by the circumferential force exerted by the teeth of the primary end against the spring to transmit the weight moment, which largely avoids resonance. Moreover, the elastic deformation generated by the simple piece during transmission of the sweeping moment enables the mechanical system to achieve better vibration reduction effects, with an average vibration reduction rate of over 36%. The serpentine spring piece is made of high-quality spring steel and has undergone strict processing and excellent mechanical properties, which greatly increases the service life of the coupling compared to non-metallic elastic element couplings

1.適用于聯接兩同軸線的中、大功率的傳動軸系，主要應用于碎石機、曲柄往復運動、減速機、冶金、礦山，起重機械等 Suitable for connecting two coaxial lines of medium and high-power transmission shaft systems, mainly used in gravel machines, crank reciprocating motion, speed reducers, metallurgy, mining, lifting machinery, etc

2.工作溫度為-30℃~+150℃

進口蛇形彈性聯軸器結構特點 Structural features

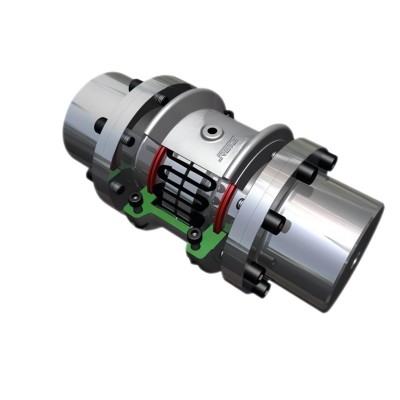

屬于一種結構先進的金屬彈性變剛度聯軸器，它靠蛇形彈簧片嵌入兩半聯軸節的齒槽內來傳遞扭矩，主要由兩個半聯軸節、兩半外罩，兩個密封圈及蛇形彈簧片組成 The utility model belongs to a metal elastic variable stiffness coupling with an advanced structure, which transmits torque by embedding serpentine spring pieces into the grooves of two half couplings. It mainly consists of two half couplings, two half housings, two sealing rings, and serpentine spring pieces

傳動效率可達99.47%，其短時超載能力為額定扭矩的兩倍，運行安全可靠The transmission efficiency can reach 99.47%, and its short-term overload capacity is twice the rated torque, ensuring safe and reliable operation.

零件少，體積小，重量輕，蛇形彈簧一般由2件或3件以上組成，使拆裝、維修比其他聯軸器尤為方便 With fewer parts, small size, and light weight, serpentine springs generally consist of 2 or more pieces, making disassembly and maintenance more convenient than other couplings.

具有一定的補償兩軸相對偏移和減振、緩沖性能 It has certain compensation for the relative deviation of two shafts, as well as vibration reduction and buffering performance

運行安全可靠，結構簡單拆裝方便 Safe and reliable operation, simple structure, convenient disassembly and assembly

傳遞效率高，起動安全,壽命長 High transmission efficiency, safe starting, long service life

整機零件少，體積小，重量輕 Less parts, small size, and light weight

罩殼軸向安裝，可承載的轉速更高減少噪音、減震性好、使用壽命長允許有較大的安裝偏差 The housing is installed axially, which can bear higher rotational speed, reduce noise, have good shock absorption, and have a long service life. Large installation deviations are allowed

RETZ（瑞茨）蛇形彈性聯軸器涵蓋了進口彈性蛇簧聯軸器、進口罩殼軸向安裝型蛇簧聯軸器、進口接中間軸蛇簧聯軸器、進口單法蘭蛇形彈性聯軸器、進口雙法蘭蛇形彈性聯軸器
