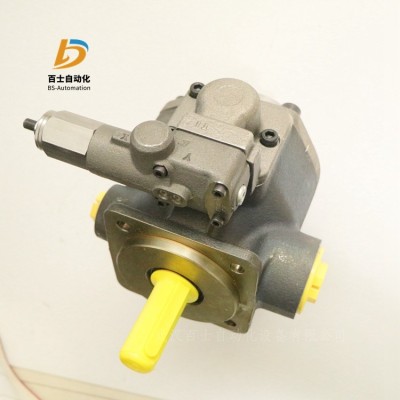

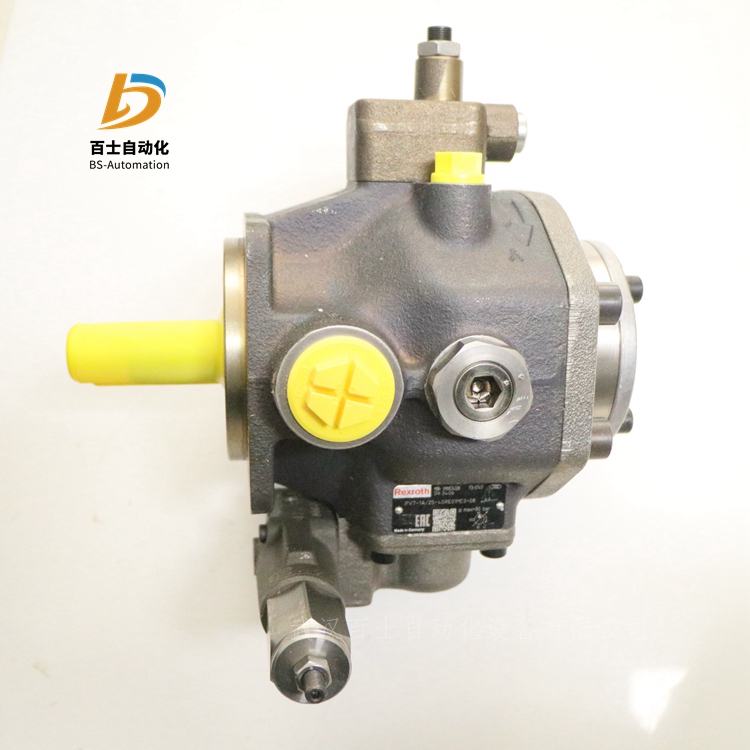

原裝正品力士樂葉片泵R900534508 PV7-1A/25-45RE01MC0-08

原裝正品力士樂葉片泵R900534508 PV7-1A/25-45RE01MC0-08

武漢百士自動化設備有限公司主營銷售產品，產品實拍，原裝正品，客戶買的安心，用的放心。常用產品

現貨供應，歡迎新老客戶詢價采購！

產品簡介：

力士樂REXROTH可調節的先導式葉片泵

PV7...C/D/N/W

規格 14 … 150

組件系列 1X

大工作壓力 160 bar

大流量 270 l/min

可變排量

低工作噪音

流體動力潤滑的滑動軸承延長了軸承的使用壽命

壓力和流量的閉環控制可能性

低滯后

極低的開機控制時間和停機控制時間

符合 ISO 3019-2 的緊固件尺寸

符合 ISO 6162-1 和 ISO 228-1 的連接尺寸

適用于 HLP、HETG、HEES 和 HFD-U 液壓油

PV7 系列標準單泵可相互組合成組合泵，也可與內齒輪泵、外齒輪泵、軸向柱塞泵和徑向柱塞泵組合。

用于連續運行中對容積流量的要求可變、保壓功能百分比較高的驅動器，如：

機床

靜液壓軸承

恒壓系統

PV7... 型號葉片泵的可調節排量有助于實現低脈動流量并可在下行控制過程中達到非常高的重復精度和低壓力峰值，這些均得益

于其特殊設計。通過調整高度調節螺釘實現噪音優化，從而降低工作噪音。流體動力潤滑的滑動軸承確保長久使用壽命。排液器

的軸向補償可實現佳的容積效率。

功能，橫截面

型號 PV7 的液壓泵是具有可變排量的葉片泵。

基本上由殼體、轉子、葉片、定子環、壓力控制器和容量調節螺釘組成。

圓形定子環 由小型往復式控制活塞和大型往復式控制活塞支撐。環的第三個支撐點是高度調節螺釘。

驅動轉子在定子環 中旋轉。在離心力的作用下，轉子 中的導向葉片 貼緊定子環 的內滑動面。

吸油和排油過程

運輸液壓油的必要元件由葉片、轉子、定子環 和控制板組成。

為保護調試過程中的泵功能，定子環 由位于大驅動柱塞后的彈簧支持，保持其偏心位置（排液器位置）。

轉子 旋轉時元件容積增加，且元件通過吸油通道填充液壓油。達到大元件容積后，元件將與吸油側分離。如果轉子 進一步旋轉，

則會建立與壓力側的連接，元件將會減少液壓油并通過壓力通道將其壓入系統中。

調節

隨著壓力在系統中積聚，小型控制柱塞的后側始終通過通道向系統壓力加壓。

在排放位置，大型控制柱塞的后側也通過控制閥芯中的鉆孔向系統壓力加壓。具有較大面積的控制活塞將定子環 保持在其偏心

位置。

泵以低于壓力控制器上設定的零行程壓力的壓力排出液壓油。

控制閥芯由彈簧保持在某一位置。

下行控制

如果產生自產品壓力 x 面積的力 FP 超過了彈簧的反作用力 FF，調節器閥芯則會向彈簧偏移。因此，位于大驅動柱塞后的腔體

將與油箱連接，從而進行卸載。

連續受到系統壓力作用而被加壓的小驅動柱塞會將定子環 移至幾乎接近中心位置。泵保持壓力不變，流量降至零且泄漏被取代。

液壓油的功率損耗和熱量即可保持為小。

特性曲線 qV-p 保持垂直，且在設置不同壓力值時平行移動。

行程內控制

當系統中壓力降至所設零行程壓力以下時，彈簧會將控制閥芯推回其原位置。

再次對大控制活塞進行加壓，并將定子環 移至偏心位置。泵再次開始排油。

力士樂REXROTH可調葉片泵，先導操縱PV7...C/D/N/W

R901320916 PV7-1X/10-14RE01MC0-08-A474

R900580381 PV7-1X/10-14RE01MC0-16

R987046360 PV7-1X/10-14RE01MC0-16LIM.15LT1450G.

R987047421 PV7-1X/10-14RE01MC0-16LIM.16LT/MIN

R987065905 PV7-1X/10-14RE01MC0-16+ZFS11/22,5R213

R987072161 PV7-1X/10-14RE01MC0-16+ZFS11/8R213

R900533851 PV7-1X/10-14RE01MC0-16-A184

R901358374 PV7-1X/10-14RE01MC0-16-P100

R901382678 PV7-1X/10-14RE01MC0-16-P125Q8

R901171150 PV7-1X/10-14RE01MC0-16-P140Q10

R900941071 PV7-1X/10-14RE01MC0-16-P45

R900941073 PV7-1X/10-14RE01MC0-16-P60Q15

R901442350 PV7-1X/10-14RE01MC0-16-P60Q20

R901414295 PV7-1X/10-14RE01MC0-16-P80Q20

R901344755 PV7-1X/10-14RE01MC0-16-P90

R900598753 PV7-1X/10-14RE01MC3-16

R900520401 PV7-1X/10-14RE01MC5-16

R901394361 PV7-1X/10-14RE01MC5-16WG

R900933324 PV7-1X/10-14RE01MC5-16WH

R901010430 PV7-1X/10-14RE01MC6-16

R900509053 PV7-1X/10-14RE01MC7-16

R900504653 PV7-1X/10-14RE01MD0-16

R900548512 PV7-1X/10-14RE01MD0-16-A234

R901404893 PV7-1X/10-14RE01MD0-16-Q15

R900520725 PV7-1X/10-14RE01MD3-16

R900520787 PV7-1X/10-14RE01MD5-16

R900537419 PV7-1X/10-14RE01MN0-16

R900772792 PV7-1X/10-14RE01MW0-16

R901136642 PV7-1X/10-14RE01MW0-16WG

R900741002 PV7-1X/10-14RE01MW0-16WH

R900534143 PV7-1X/10-20RE01MC0-10

R987179771 PV7-1X/10-20RE01MC0-10HAMERSLAGGRIJS

R901292147 PV7-1X/10-20RE01MC0-10-A497

R901388556 PV7-1X/10-20RE01MC0-10-P30Q25

R900941072 PV7-1X/10-20RE01MC0-10-P45

R901404630 PV7-1X/10-20RE01MC0-10-P70Q28

R987067707 PV7-1X/10-20RE01MC010+1PF2G2-4X/08RR20MR

R987074006 PV7-1X/10-20RE01MC010+AZPF-11-008RRR20MB

R987136850 PV7-1X/10-20RE01MC010+R4/1,00-450WG01M01

R900538125 PV7-1X/10-20RE01MC3-10

R901303349 PV7-1X/10-20RE01MC3-10-A497

R900539710 PV7-1X/10-20RE01MC5-10

R900738663 PV7-1X/10-20RE01MC5-10WG

R900247239 PV7-1X/10-20RE01MC5-10WH

R900908540 PV7-1X/10-20RE01MC7-10

R900931507 PV7-1X/10-20RE01MC7-10WH

R900906584 PV7-1X/10-20RE01MD0-10

R900782498 PV7-1X/10-20RE01MD0-10-A234

R900700454 PV7-1X/10-20RE01MD5-10

R901043560 PV7-1X/10-20RE01MW0-10WH

R987067102 PV7-1X/100-118RE07MC0+ PV7-63-71RE07MC0

R987068626 PV7-1X/100-118RE07MC0+ PV7-63-71RE07MC0

R900506809 PV7-1X/100-118RE07MC0-16

R987074658 PV7-1X/100-118RE07MC0-16LIM83CC.

R987062892 PV7-1X/100-118RE07MC0-16LIM.80CC.

R987072990 PV7-1X/100-118RE07MC0-16+16-20RE01MC0-16

R987066407 PV7-1X/100-118RE07MC0-16+20-25RA01MA0-05

R987070001 PV7-1X/100-118RE07MC0-16+25-30RE01MC0-16

R901432834 PV7-1X/100-118RE07MC0-16-P110

R901396331 PV7-1X/100-118RE07MC0-16-P120

R901404632 PV7-1X/100-118RE07MC0-16-P65Q160

R900511215 PV7-1X/100-118RE07MC3-16

R900516546 PV7-1X/100-118RE07MC5-16

R900950061 PV7-1X/100-118RE07MC5-16WG

R900556803 PV7-1X/100-118RE07MC5-16WH

R901183579 PV7-1X/100-118RE07MC5-16WH-P125Q116

R900961521 PV7-1X/100-118RE07MC6-16

R987066964 PV7-1X/100-118RE07MC6-16+100-118RE07MC6*

R900533637 PV7-1X/100-118RE07MC7-16

R901348138 PV7-1X/100-118RE07MC7-16WG

R900752351 PV7-1X/100-118RE07MC7-16WH

R987065682 PV7-1X/100-118RE07MCO+V5-1X-193/RJ15DMC

R900532770 PV7-1X/100-118RE07MD0-16

R900950419 PV7-1X/100-118RE07MD0-16-A234

R900771631 PV7-1X/100-118RE07MD0-16-A427

R901398834 PV7-1X/100-118RE07MD0-16-A517

R901400470 PV7-1X/100-118RE07MD0-16-P30Q165-A517

R901404706 PV7-1X/100-118RE07MD0-16-Q120

R987066526 PV7-1X/100-118RE07MD016+V1-1X/036RJ15UMB

R901101367 PV7-1X/100-118RE07MD3-16

R900949187 PV7-1X/100-118RE07MD6-16

R900928704 PV7-1X/100-118RE07MN0-16

R900519411 PV7-1X/100-118RE07MN5-16

R901061279 PV7-1X/100-118RE07MW0-16WG

R901429723 PV7-1X/100-118RE07MW0-16WG-P30P100Q120

R900740824 PV7-1X/100-118RE07MW0-16WH

R901404633 PV7-1X/100-118RE07MW0-16WH-P20P70Q160

R901413656 PV7-1X/100-118RE07MW5-16WG-P20P80Q170

R901129340 PV7-1X/100-118RE07MW6-16WH

R900561846 PV7-1X/100-150RE07MC0-08

R900973548 PV7-1X/100-150RE07MC0-08-A184

R901047738 PV7-1X/100-150RE07MC0-08-A446

R901173632 PV7-1X/100-150RE07MC0-08-A464

R901384145 PV7-1X/100-150RE07MC0-08-C3.1

R901392573 PV7-1X/100-150RE07MC0-08-P35

R900961350 PV7-1X/100-150RE07MC3-08

R900560629 PV7-1X/100-150RE07MC5-08

R900761807 PV7-1X/100-150RE07MC5-08WG

R900948299 PV7-1X/100-150RE07MC5-08WH

R900577850 PV7-1X/100-150RE07MC7-08

R901366181 PV7-1X/100-150RE07MC7-08WH

R900915470 PV7-1X/100-150RE07MD0-08

R901439483 PV7-1X/100-150RE07MD0-08-A184

R900910479 PV7-1X/100-150RE07MD5-08

R900781572 PV7-1X/100-150RE07MN0-08

R901059507 PV7-1X/100-150RE07MW0-08WH

R900580382 PV7-1X/16-20RE01MC0-16

R987065773 PV7-1X/16-20RE01MC0-16LIM17CC

R987066114 PV7-1X/16-20RE01MC0-16LIM20CC

R900517795 PV7-1X/16-20RE01MC0-16-A184

R901370386 PV7-1X/16-20RE01MC0-16-C3.1

R901412083 PV7-1X/16-20RE01MC0-16-P100

R901406649 PV7-1X/16-20RE01MC0-16-P110

R901417552 PV7-1X/16-20RE01MC0-16-P120

R901405871 PV7-1X/16-20RE01MC0-16-P52

R901339145 PV7-1X/16-20RE01MC0-16-P70Q20

R987119852 PV7-1X/16-20RE01MC016+ PV7-16-20RE01MC016

R987074165 PV7-1X/16-20RE01MC016+PVV1-1X/018RJ15DMB

R987066162 PV7-1X/16-20RE01MC016+V7/10-14RE01MC016

R987046365 PV7-1X/16-20RE01MC016+V7/16-20RE01MC16

R900592237 PV7-1X/16-20RE01MC3-16

R900616890 PV7-1X/16-20RE01MC3-16-A184

R901391674 PV7-1X/16-20RE01MC3-16-C3.1

R901429722 PV7-1X/16-20RE01MC3-16-P50Q25

R900506473 PV7-1X/16-20RE01MC5-16

R900934651 PV7-1X/16-20RE01MC5-16WG

R900926429 PV7-1X/16-20RE01MC5-16WH

R900748912 PV7-1X/16-20RE01MC6-16

R900534412 PV7-1X/16-20RE01MC7-16

R901163663 PV7-1X/16-20RE01MC7-16WH

R901161166 PV7-1X/16-20RE01MC8-16

R900509274 PV7-1X/16-20RE01MD0-16

R987179769 PV7-1X/16-20RE01MD0-16HAMERSLAGGRIJS

R900573212 PV7-1X/16-20RE01MD0-16-A234

R901284711 PV7-1X/16-20RE01MD0-16-Q25

R900511987 PV7-1X/16-20RE01MD3-16

R901134661 PV7-1X/16-20RE01MD6-16

R987196702 PV7-1X/16-20RE01MD6-16

R900939159 PV7-1X/16-20RE01MN0-16

R900733270 PV7-1X/16-20RE01MW0-16

R900721670 PV7-1X/16-20RE01MW0-16WG

R900722117 PV7-1X/16-20RE01MW0-16WH

R900533582 PV7-1X/16-30RE01MC0-08

R900757582 PV7-1X/16-30RE01MC0-08-A184

R901320920 PV7-1X/16-30RE01MC0-08-A474

R987127040 PV7-1X/16-30RE01MC008+PGH2-2X/008RR07VU2

R900533296 PV7-1X/16-30RE01MC3-08

R900930106 PV7-1X/16-30RE01MC5-08

R900967123 PV7-1X/16-30RE01MC5-08WG

R900245924 PV7-1X/16-30RE01MC5-08WH

R901023894 PV7-1X/16-30RE01MC7-08

R900560658 PV7-1X/16-30RE01MD0-08

R901226880 PV7-1X/16-30RE01MN0-08

R901231523 PV7-1X/16-30RE01MW0-08WH

R900580383 PV7-1X/25-30RE01MC0-16

R987064563 PV7-1X/25-30RE01MC0-16LIM.28CC

R987066596 PV7-1X/25-30RE01MC0-16PMAX=60BAR

R987255802 PV7-1X/25-30RE01MC0-16+ PV7-1X/10-14RE**

R987070149 PV7-1X/25-30RE01MC0-16+V7-1X/16-20RE01**

R900523267 PV7-1X/25-30RE01MC0-16-A184

R900965089 PV7-1X/25-30RE01MC0-16-A234

R901381715 PV7-1X/25-30RE01MC0-16-P100Q36

R987066541 PV7-1X/25-30RE01MC016+1PF2G2-4X/08RR20MR

R987306462 PV7-1X/25-30RE01MC016+AZPF10-008RRR20MB

R900586235 PV7-1X/25-30RE01MC3-16

R900517464 PV7-1X/25-30RE01MC5-16

R900919510 PV7-1X/25-30RE01MC5-16WG

R900933323 PV7-1X/25-30RE01MC5-16WH

R901086789 PV7-1X/25-30RE01MC5-16WH-A234

R901375575 PV7-1X/25-30RE01MC6-16

R900941543 PV7-1X/25-30RE01MC7-16

R987410063 PV7-1X/25-30RE01MCO16+PVV21X068RJ15DMB

R900509506 PV7-1X/25-30RE01MD0-16

R987065930 PV7-1X/25-30RE01MD0-16+ PV7/25-30RE01MD0

R900920739 PV7-1X/25-30RE01MD0-16-A234

R901382863 PV7-1X/25-30RE01MD5-16WH

R901022287 PV7-1X/25-30RE01MN0-16

R900768658 PV7-1X/25-30RE01MW0-16

R900744495 PV7-1X/25-30RE01MW0-16WH

R900705426 PV7-1X/25-30RE01MW5-16WH

R900534508 PV7-1X/25-45RE01MC0-08
