在線離線TOC分析儀廠家

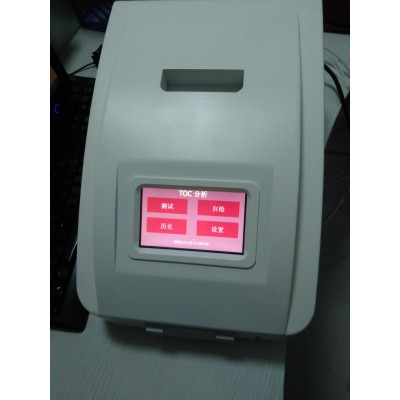

在線離線TOC分析儀廠家  總有機碳分析儀是北京北廣精儀公司自主研發的高精度總有機碳分析儀器。產品使用電導率差值檢測技術，檢測精度高，響應時間短。產品符合國家法規和標準，可滿足制藥用水、注射用水、超純水和去離子水的在線及離線的檢測要求。

 在線離線TOC分析儀廠家

一.工作原理

本儀器采用紫外氧化的原理，將樣品中的有機物氧化為二氧化碳，二氧化碳的測試采用的是直接電導率法，通過測試經過氧化反應的樣品的總碳含量和未經過氧化反應的樣品總無機碳的含量差值來測定總有機碳含量，即：總有機碳（TOC）=總碳（TC）-總無機碳（TIC）。

二.產品特點

1.儀器采用便攜設計，使用輕便，方便移動至取樣點。

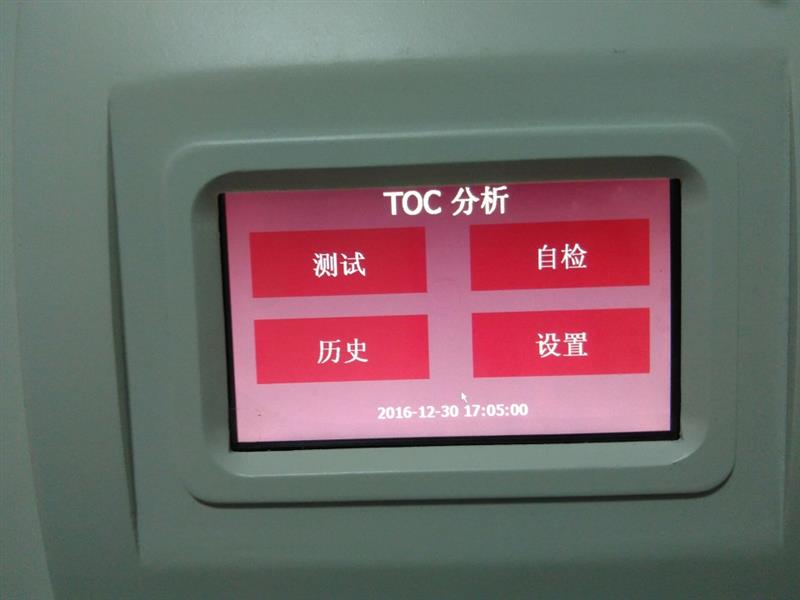

2.采用嵌入式系統，觸摸屏設計，純中文操作方便簡易。

3.針對制藥用水（TOC含量在1000ppb以下）總有機碳含量的檢測設計，進行檢測。

4.配備大量的儲存空間，能夠存儲大量的測試數據。

5.中文打印，輸出測試參數、測試結果。

6.在使用、貯存和更換過程中不需要?dú)怏w或試劑，無移動部件，減少維修和維護成本。

7.當測試樣品濃度超過規定限度，儀器能夠自動報警，并輸出控制信號。

8.符合國家《中國藥典》 CP2010規定的測試方案，可以提供 IQ/OQ/PQ 服務。

三.性能規格:

測量范圍：0.001mg/L～1.0mg/L（傳感器可定制，濃度可調節最達到1000mg/L，根據式樣要求傳感器定制調節到某一段濃度范圍）

精度：±4% 測試范圍

分辨率：0.001mg /L

分析時間：連續分析

響應時間：4分鐘之內

檢測極限：0.001mg /L

樣品溫度：1- 95℃

重復性誤差：≤ 3%

電源要求/功能：220V

顯示屏：彩色觸摸屏

四.應用領域：

  制藥用水（純化水、注射用水）的在線監測和實驗室測試，以及清潔驗證；環保測試、電子行業、食品行業等。

產品說明:

總有機碳（TOC）分析儀采用世界先進的雙波長紅外外氧化技術，精度高、靈敏度高。高性能CPU，觸摸屏智能化控制，具有離線分析和在線分析選配功能，配制外置式打印機，人性化的設計理念，更換UV燈和泵管不用拆開機箱，操作簡單、方便，實現了分析儀器國產化。符合《中國藥典》2010版附錄VIII R制藥用水中總有機碳測定法，滿足藥典對儀器的要求：①TOC=TC-TIC，②系統適用性試驗，③檢測靈敏度（等于或小于0.001mg/L）。

五.主要特征:

1、高精度、高靈敏度，操作簡單。

2、人性化操作界面，有一鍵運行功能，自動管路清洗功能。

3、高性能CPU，觸摸屏設計，超大640*480點陣真彩顯示器。

4、不用拆開機箱更換UV燈和泵管。

5、檢測上限可設定，自動上限報警功能。

6、具有RS232數據接口，歷史數據可存儲6個月。

7、離線檢測和在線檢測可選配。

8、具有打印功能

六.主要配置

主機 一臺

觸摸屏 （鑲嵌到儀器中）

微型打印機   一臺

進樣管   一條

電源線  一套

產品說明書  一份

產品合格證  一份

產品裝箱單  一份

The total organic carbon analyzer is a high-precision total organic carbon analysis instrument independently developed by Beijing Beiguang Jingyi Company. The product uses conductivity difference detection technology, which has high detection accuracy and short response time. The product complies with national regulations and standards, and can meet the online and offline testing requirements for pharmaceutical water, injection water, ultrapure water, and deionized water.

One Working principle

This instrument adopts the principle of ultraviolet oxidation to oxidize organic matter in the sample into carbon dioxide. The direct conductivity method is used to test the carbon dioxide content. The total organic carbon content is determined by measuring the difference between the total carbon content of the sample that has undergone oxidation reaction and the total inorganic carbon content of the sample that has not undergone oxidation reaction, that is, total organic carbon (TOC)=total carbon (TC) - total inorganic carbon (TIC).

II Product Features

1. The instrument adopts a portable design, which is easy to use and convenient to move to the sampling point.

2. Adopting an embedded system and touch screen design, pure Chinese operation is convenient and easy.

3. Design and conduct testing for the total organic carbon content of pharmaceutical water (TOC content below 1000ppb).

4. Equipped with a large amount of storage space, capable of storing a large amount of test data.

5. Print in Chinese and output test parameters and results.

6. No gas or reagents are required during use, storage, and replacement, and there are no moving parts, reducing maintenance and repair costs.

When the concentration of the test sample exceeds the specified limit, the instrument can automatically sound an alarm and output a control signal.

8. According to the testing plan specified in the Chinese Pharmacopoeia CP2010, IQ/OQ/PQ services can be provided.

III Performance specifications:

Measurement range: 0.001mg/L~1.0mg/L (The sensor can be customized, and the concentration can be adjusted up to 1000mg/L. The sensor can be customized and adjusted to a certain concentration range according to the style requirements)

Accuracy:±4% Test range

Resolution: 0.001mg/L

Analysis time: continuous analysis

Response time: within 4 minutes

Detection limit: 0.001mg/L

Sample temperature: 1-95℃

Repetitive error:≤3%

Power requirement/function: 220V

Display screen: Color touch screen

4 Application fields:

Online monitoring and laboratory testing of pharmaceutical water (purified water, injection water), as well as cleaning validation; Environmental testing, electronics industry, food industry, etc.

Product Description:

The total organic carbon (TOC) analyzer adopts the world's advanced dual wavelength red external oxidation technology, with high accuracy and sensitivity. High performance CPU, touch screen intelligent control, with offline analysis and online analysis optional functions, equipped with an external printer, humanized design concept, no need to open the chassis to replace UV lamps and pump tubes, simple and convenient operation, realizing the localization of analytical instruments. Complies with Appendix VIII R of the Chinese Pharmacopoeia 2010 edition for the determination of total organic carbon in pharmaceutical water, meeting the requirements of the Pharmacopoeia for instruments:①TOC=TC-TIC,②system suitability test,③detection sensitivity (equal to or less than 0.001mg/L).

Five Main features:

1. High precision, high sensitivity, and easy operation.

2. Humanized operation interface, with one click operation function and automatic pipeline cleaning function.

3. High performance CPU, touch screen design, ultra large 640 * 480 dot matrix true color display.

4. No need to open the chassis to replace the UV lamp and pump tube.

5. The detection upper limit can be set, and the automatic upper limit alarm function.

6. Equipped with RS232 data interface, historical data can be stored for 6 months.

7. Offline detection and online detection are optional.

8. Equipped with printing function

VI Main configuration

One host

Touch screen (embedded in the instrument)

One micro printer

One injection tube

A set of power cords

One copy of product manual

One copy of product qualification certificate

Product packing list copy
